Furnace Stack High-Temperature Coating
A corroding furnace stack prepared and coated in situ at operating heat, with no shutdown and no cool-down.
What was failing
A furnace stack corrodes under operating heat, where the hot steel and the flue conditions drive surface attack that thins the shell over time. The metal loss spreads across the stack and weakens the structure that carries the exhaust, and if it is left to run it can force an unplanned outage. The problem is that the unit could not be cooled and shut down for a conventional repair, so any protection had to go on while the stack stayed hot and in service.
How AAS approaches it
We treat the stack in place at operating heat rather than waiting for a shutdown that the plant could not give us. First we prepare the hot surface so the coating has clean, sound metal to bond to. Then we apply a Belzona 5000 Series high-temperature coating that is formulated to be put on and cured on a hot substrate, sealing the steel against the corrosion that was thinning it. Where the surface had lost metal, we bring it back with a compatible repair before coating. The crew works the stack in stages so the unit keeps running through the job.
Assess and map
We inspect the hot stack to map the corrosion and metal loss and confirm the operating conditions so the right high-temperature system is selected.
Prepare the hot surface
We clean and profile the stack surface at operating heat so the coating bonds to sound metal.
Rebuild lost metal
We bring thinned and corroded areas back to profile with a compatible repair before the coating goes on.
Apply the high-temperature coating
We apply a Belzona 5000 Series coating formulated for application and cure on a hot substrate, sealing the steel against further attack.
Cure and return to service
We confirm the coating has cured on the hot surface and hand the stack back without any interruption to operation.
The result
From the job
Repair and protection work of this kind, performed by AAS crews across Louisiana.
Capabilities used here
Where this work happens
Other projects

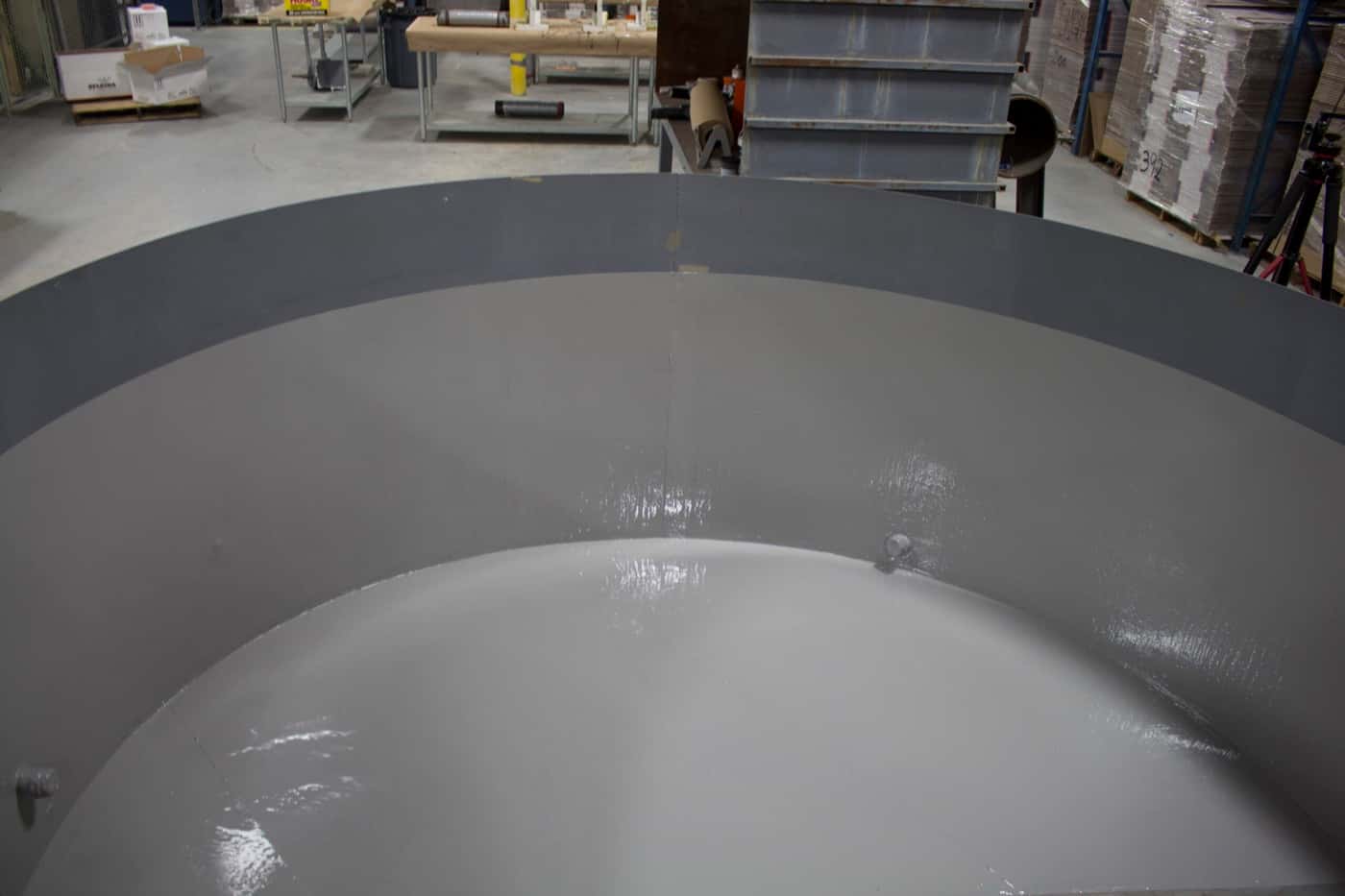

Storage Tank Floor Reclamation
Corroded aboveground tank floor rebuilt and lined back to immersion service without cutting out plate.
View project

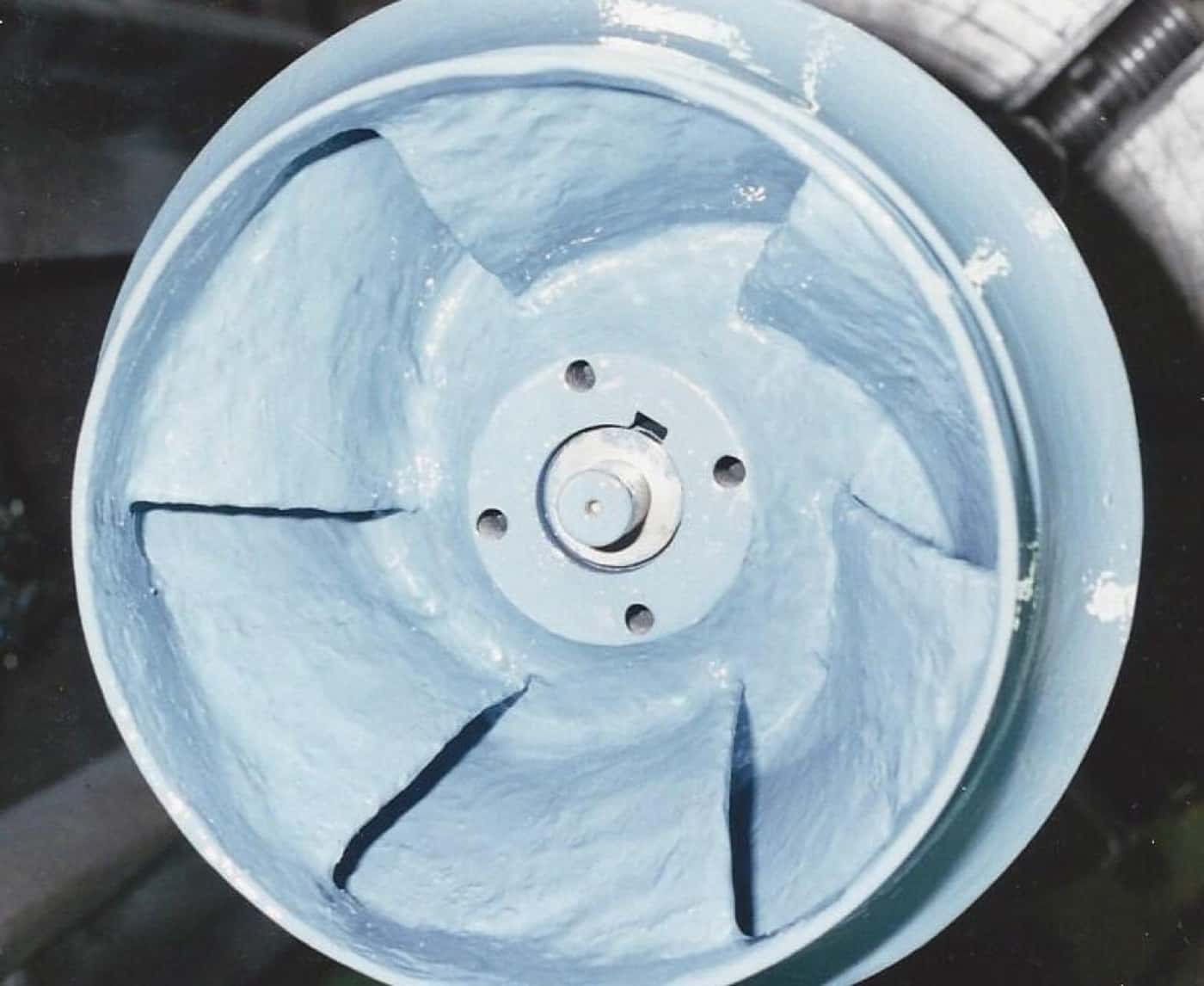

Centrifugal Pump Rebuild & Efficiency Restoration
Cold-rebuilding an eroded pump casing and lining it to restore clearances, no new casting required.
View project
Live Pipe Leak Seal & Composite Wrap
Live leak sealed and a degraded process line reinforced with an engineered composite wrap, no welding and often no shutdown.
View project
Wastewater Clarifier & Concrete Structure Relining
Spalled, rebar-exposed concrete clarifier rebuilt and relined for continued immersion service.
View project

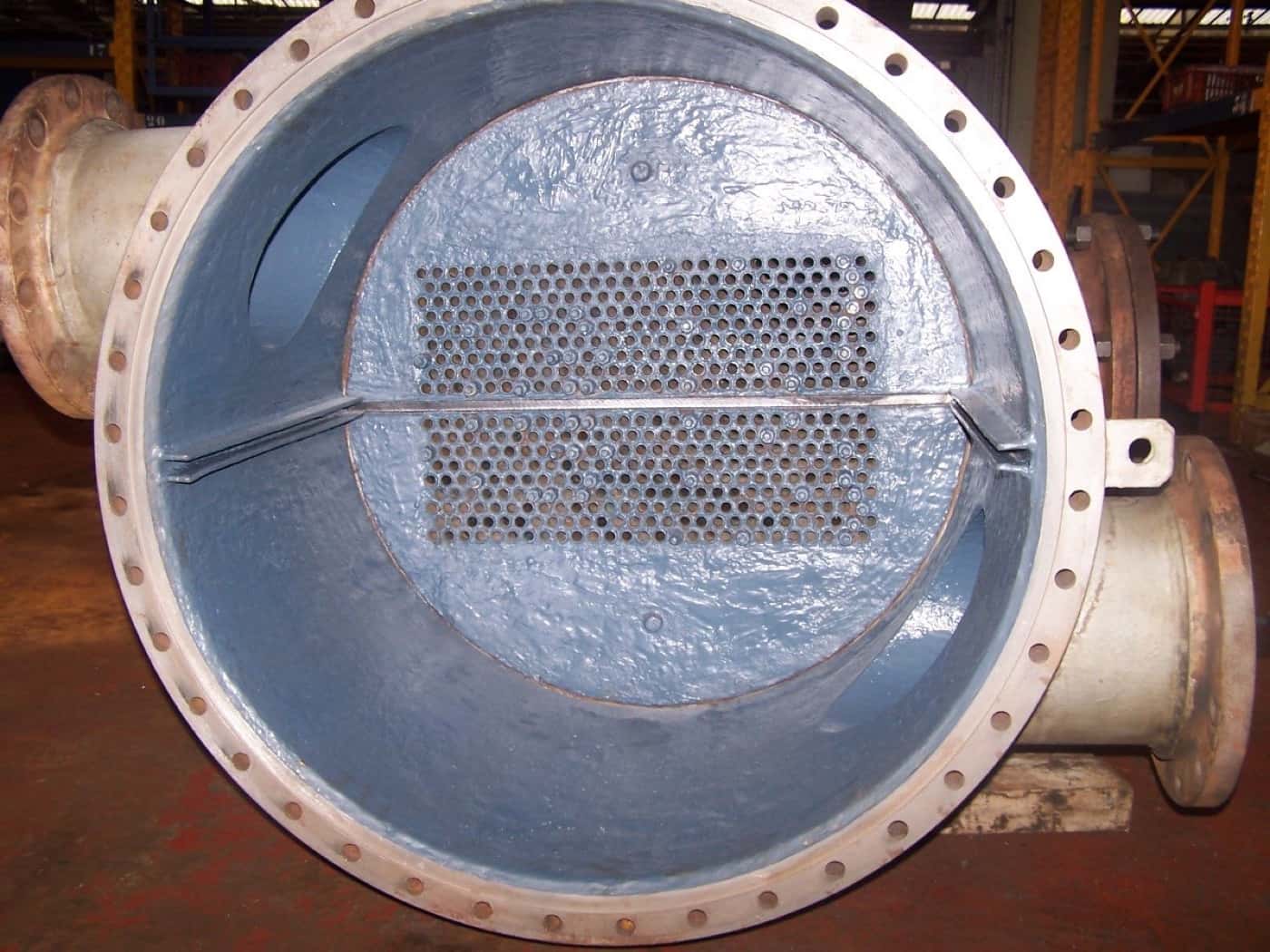

Heat Exchanger Water Box Protection
